SX-CAN delivers reliable, high-speed CAN bus communication for JLR diagnostics and development. Whether you are logging live data from a running engine or flashing a module in the workshop, SX-CAN maintains a stable connection under full bus load.
SX-CAN is a professional-grade CAN bus interface engineered for Jaguar Land Rover vehicles. It connects to your PC via USB and handles both standard CAN and CAN FD frames at high speed, making it ideal for diagnostics, reverse engineering, and development.
Full support for ISO 11898 CAN (up to 1 Mbps) and CAN FD (up to 5 Mbps). Switch between protocols automatically based on the detected vehicle architecture.
High-speed data logging with microsecond timestamps. Export to CSV, ASC, or BLF format for analysis in third-party tools like CANalyzer or Wireshark.
API and SDK included for custom tool development. Build your own diagnostic scripts, automated tests, or integration with workshop management systems.

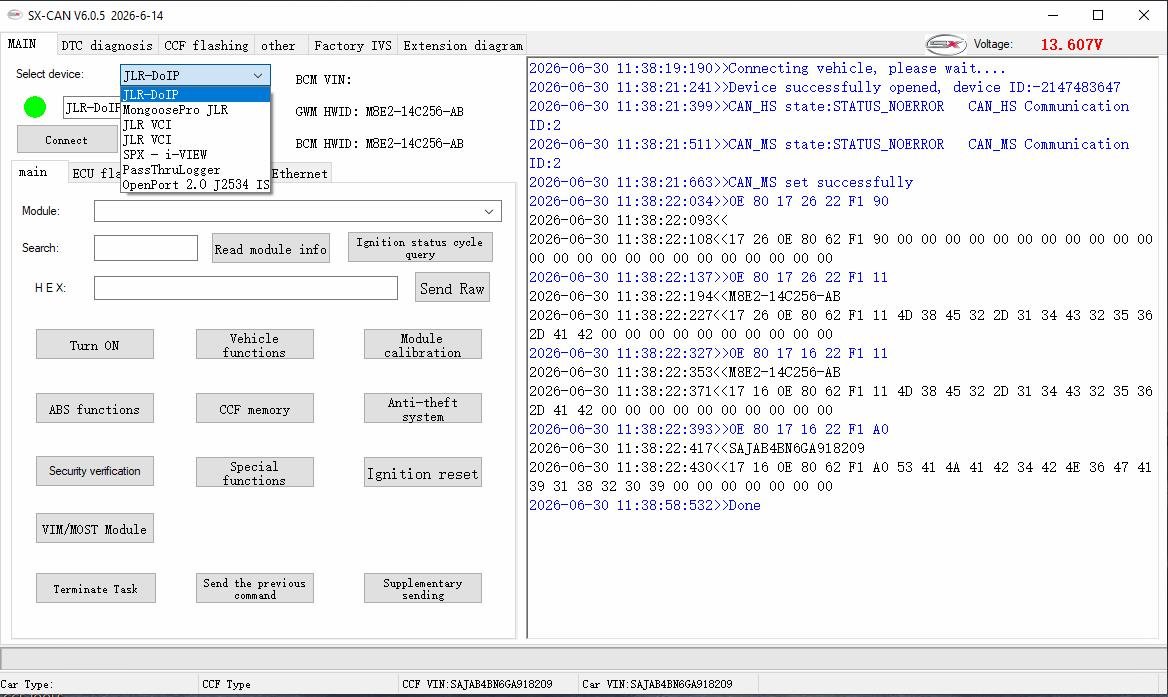

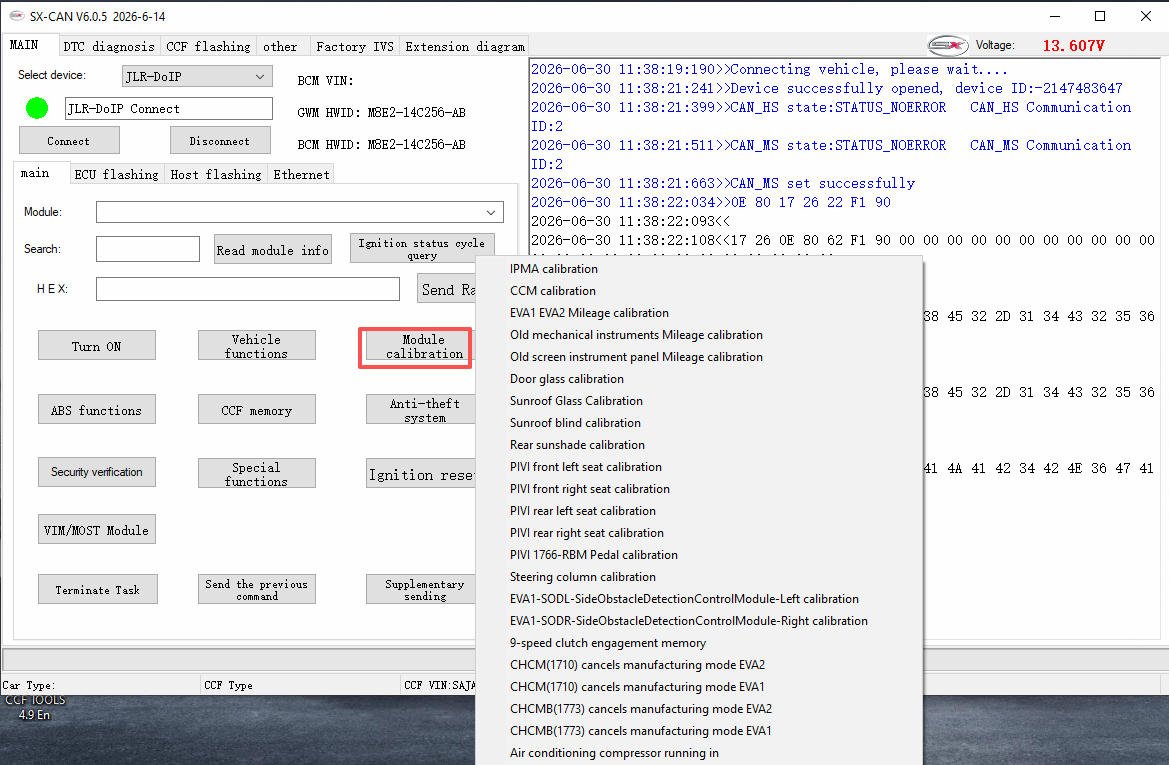

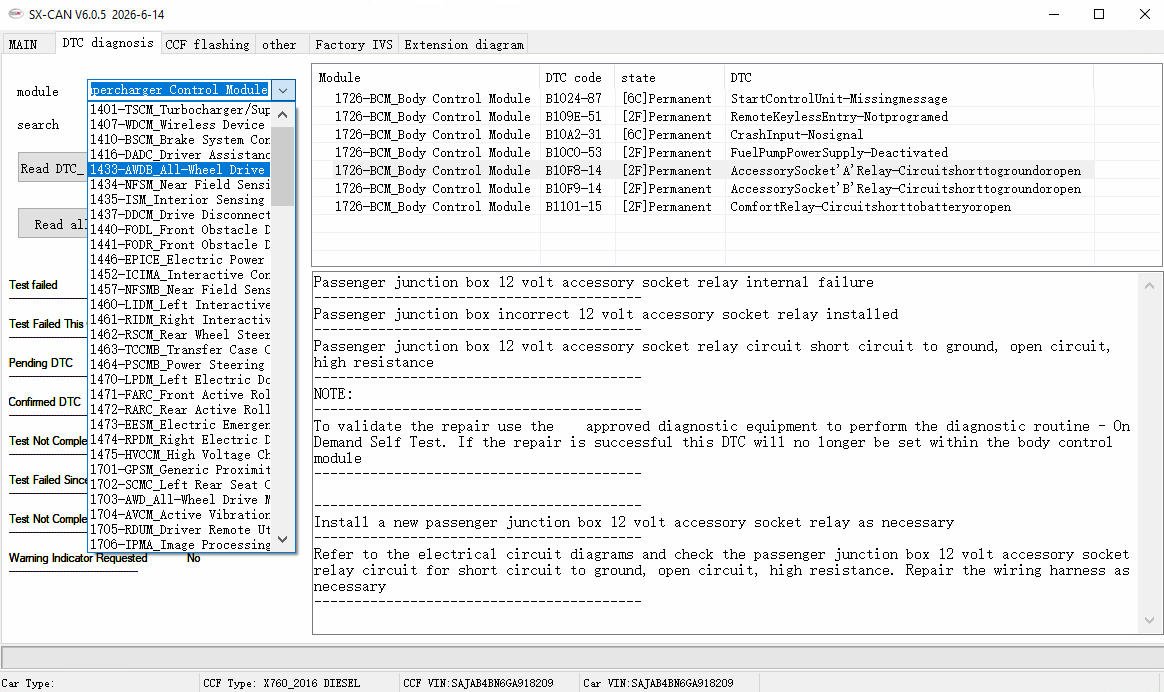

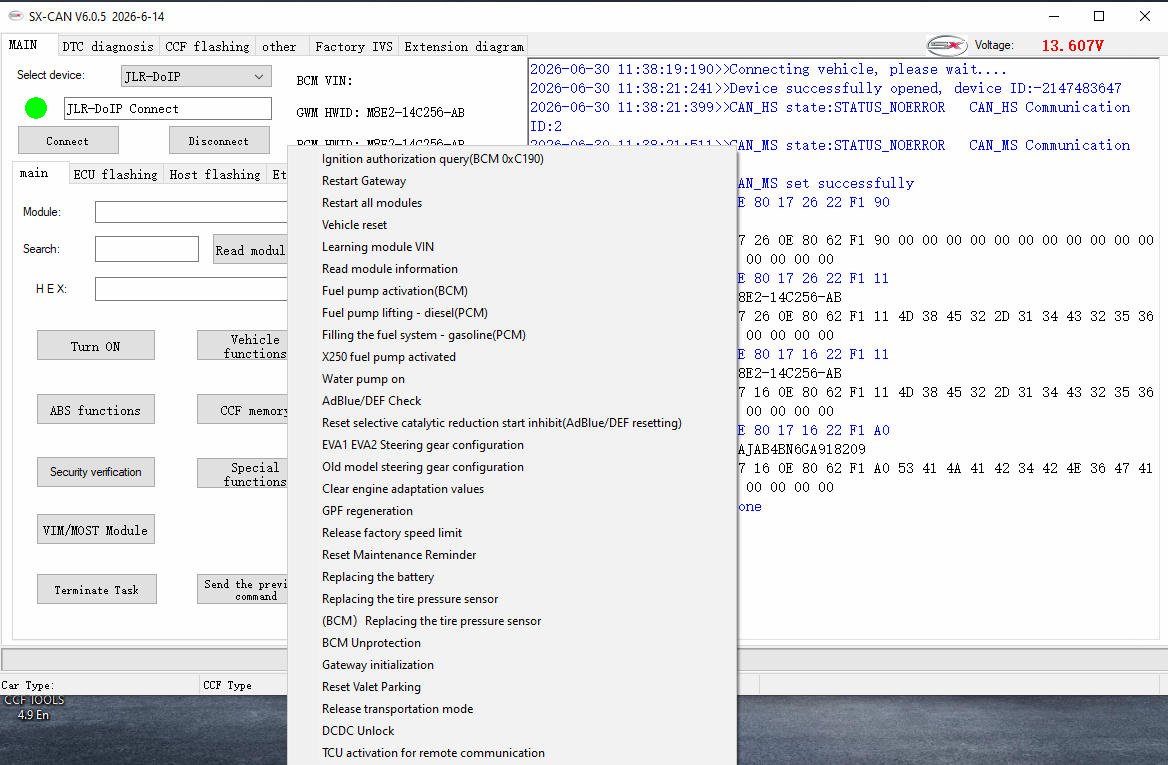

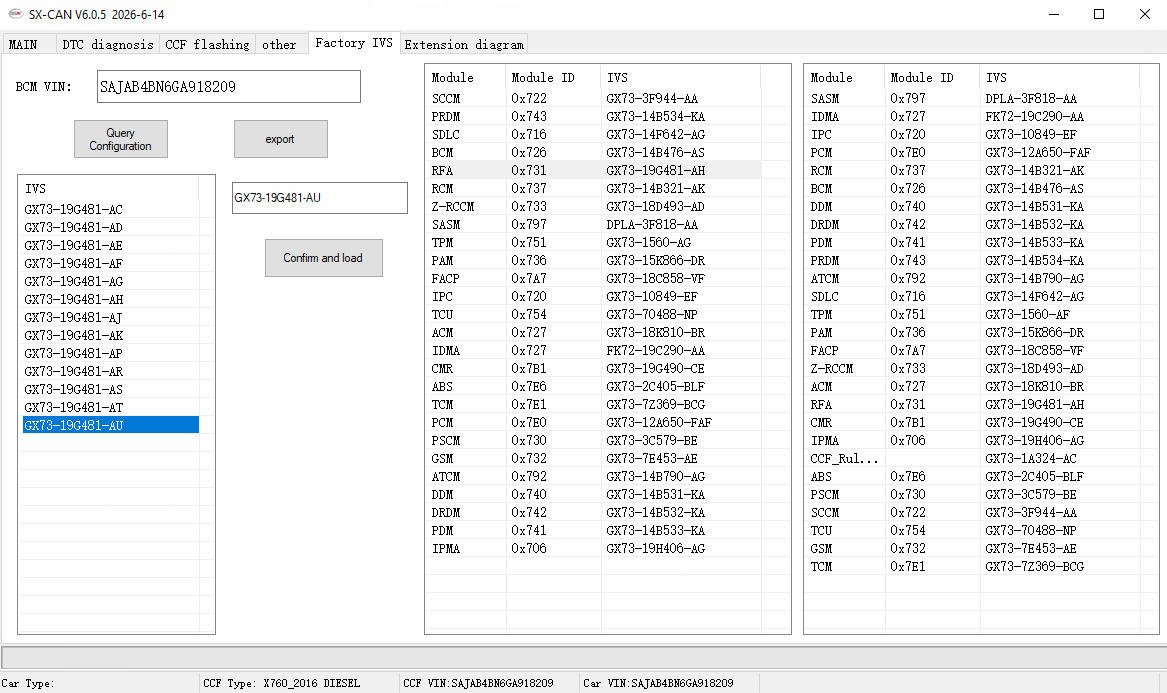

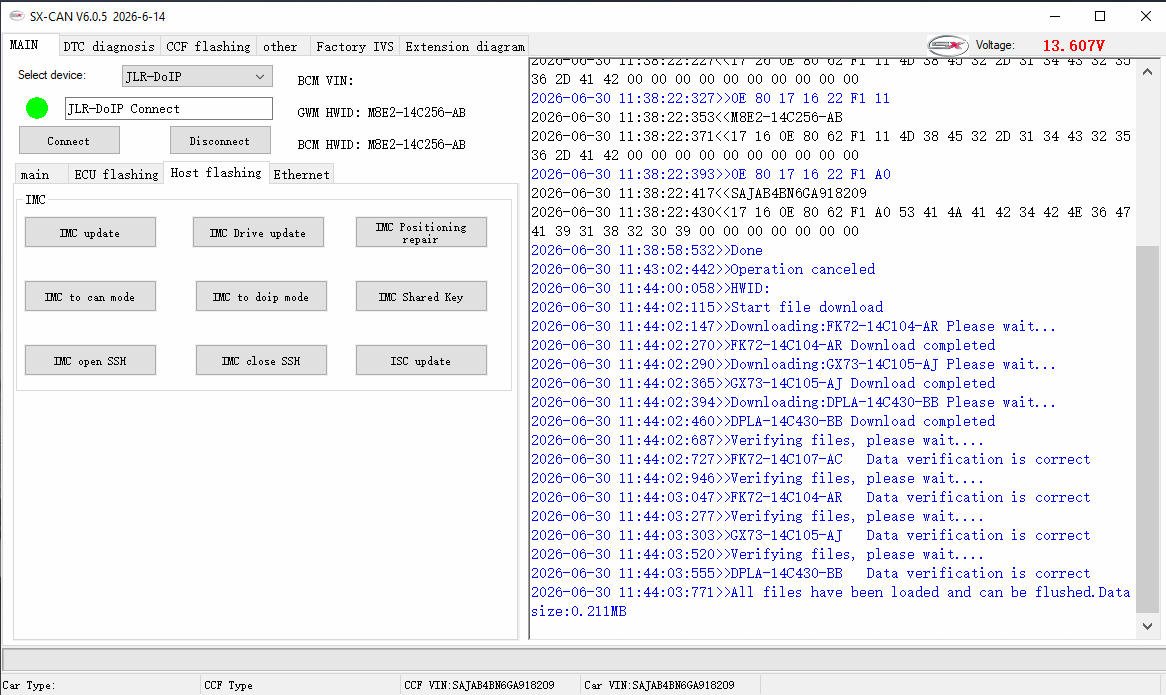

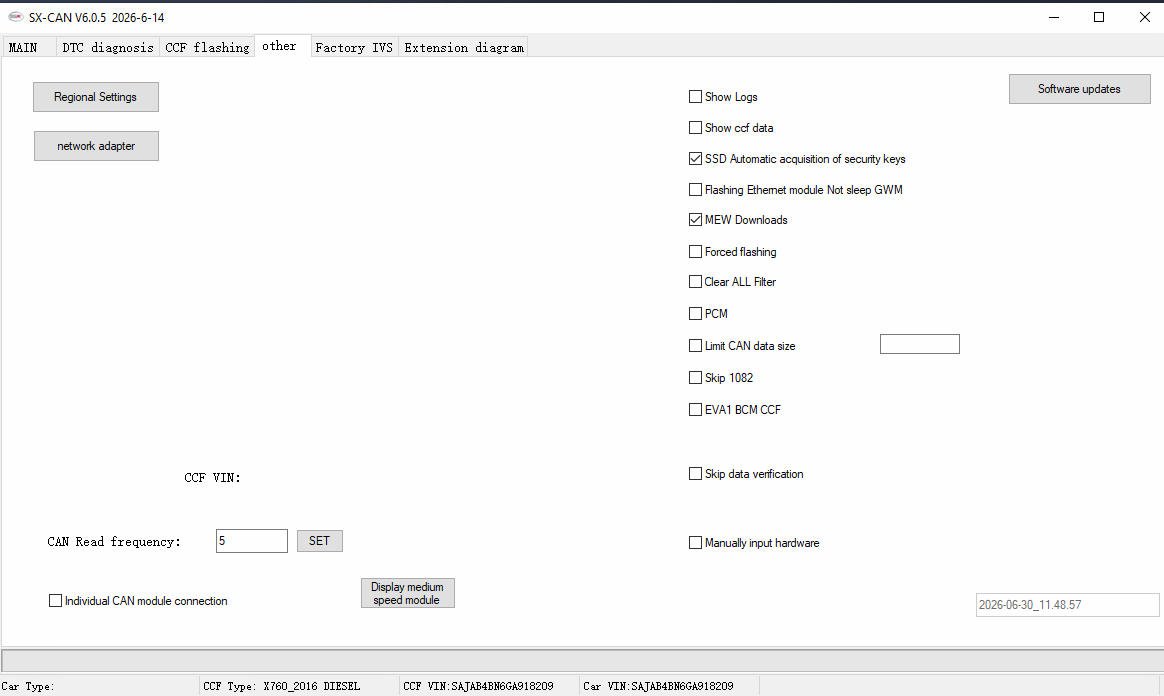

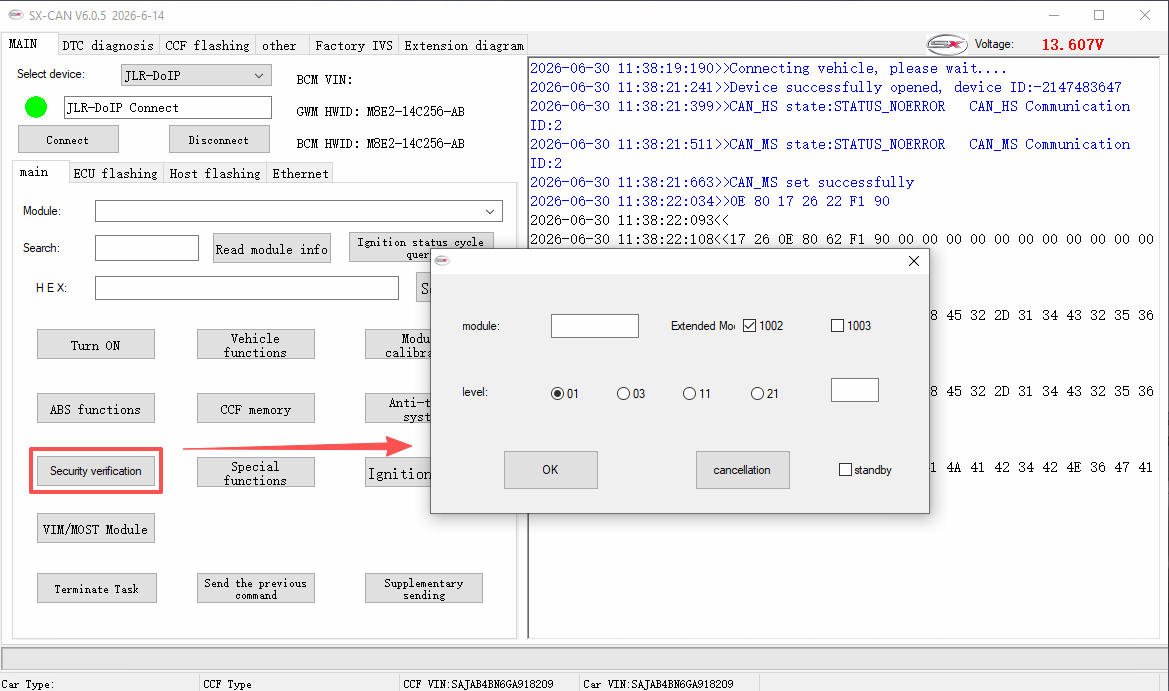

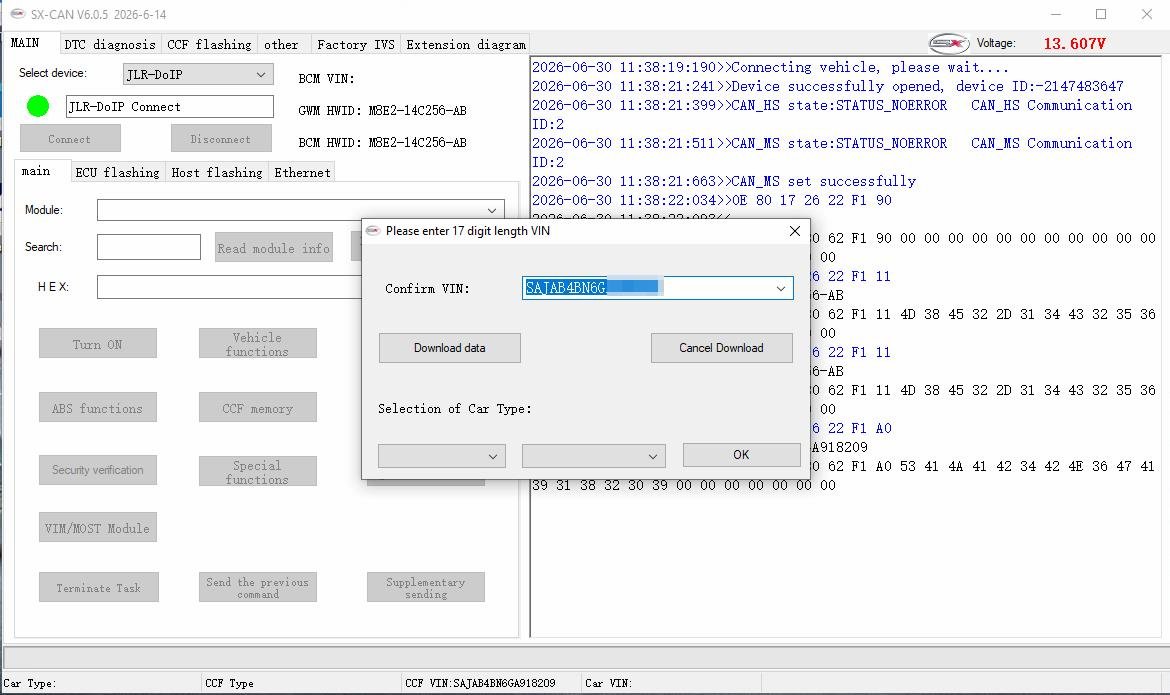

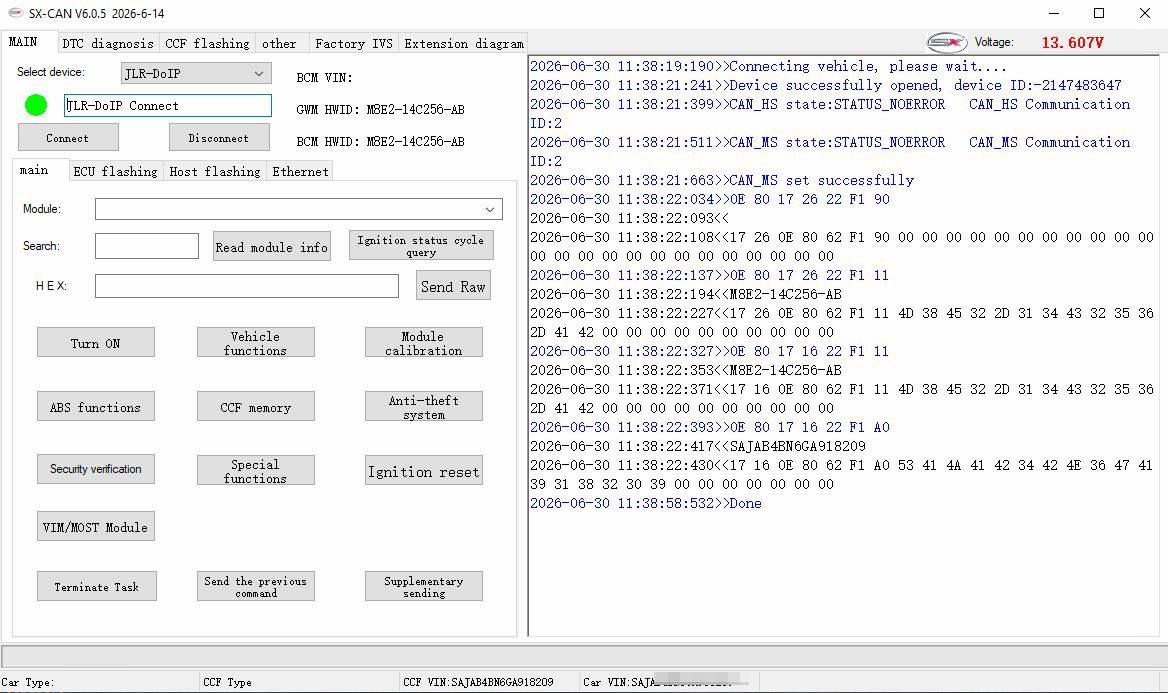

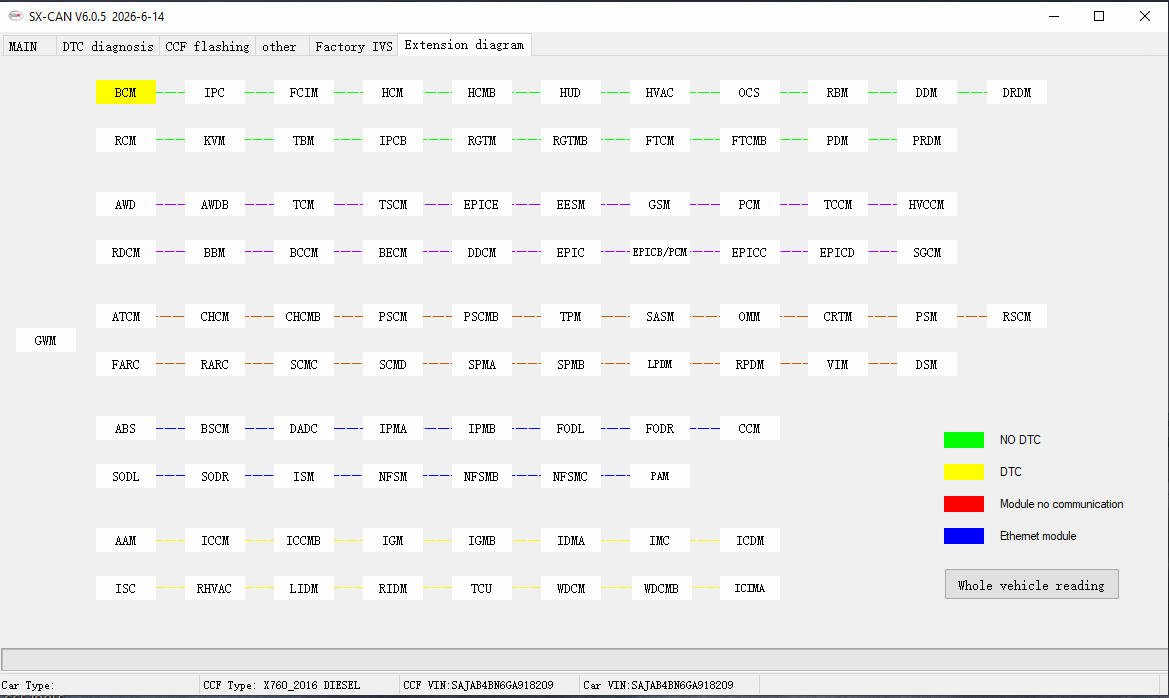

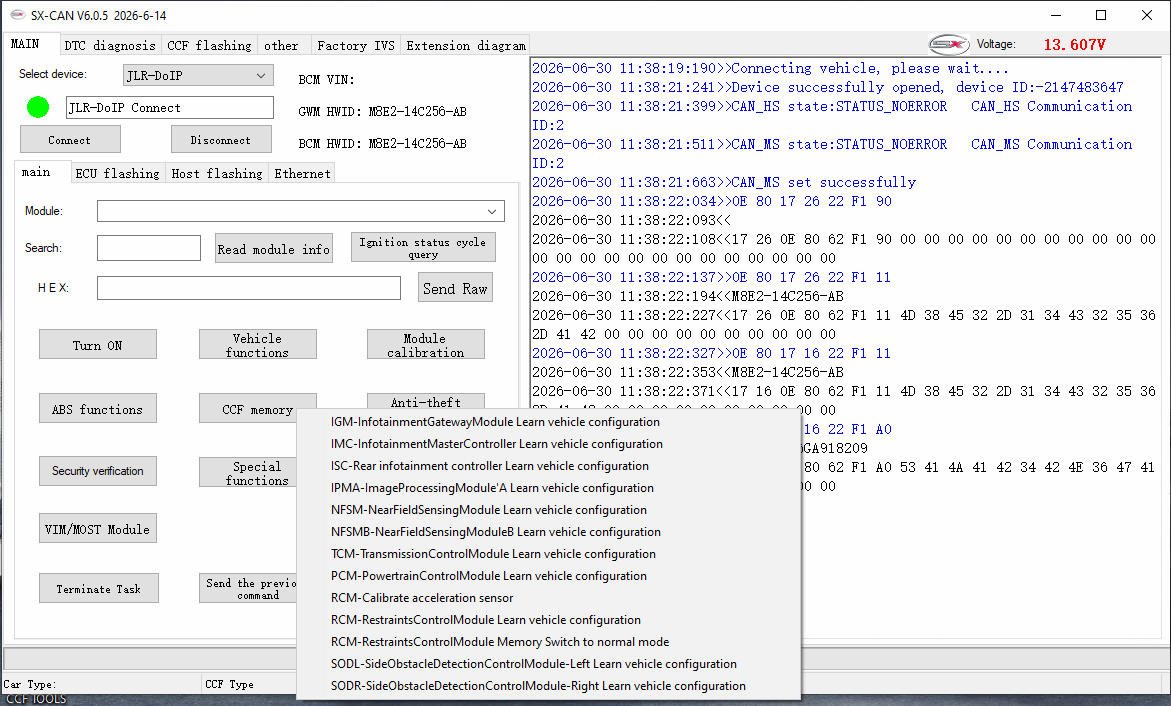

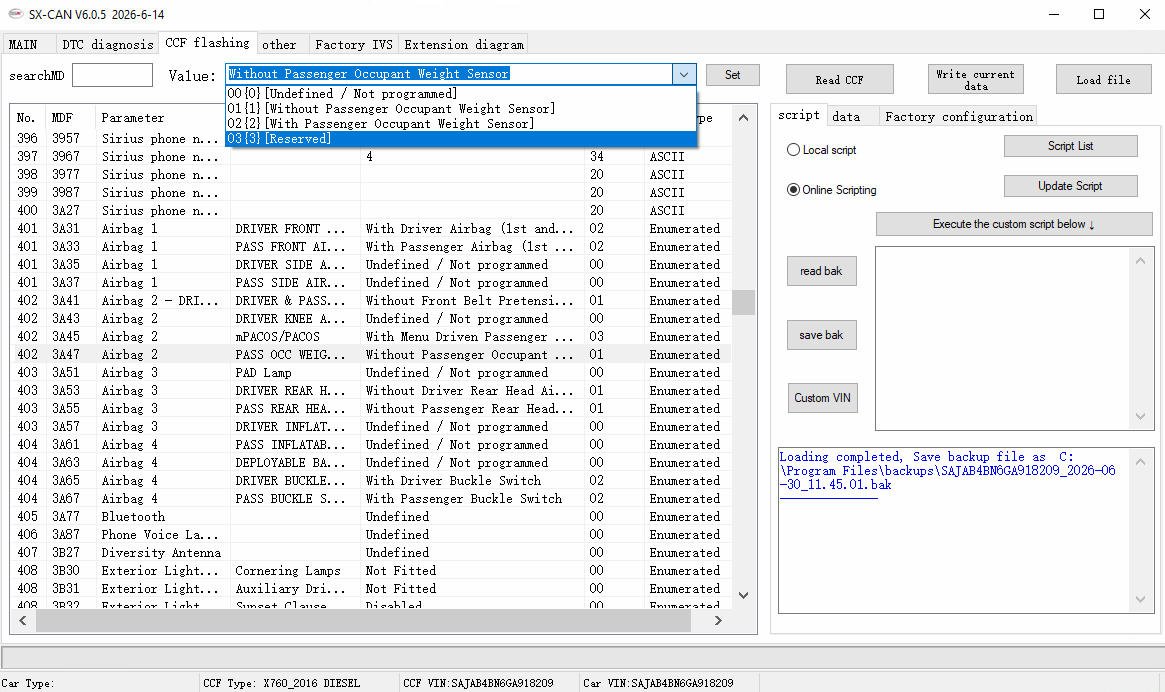

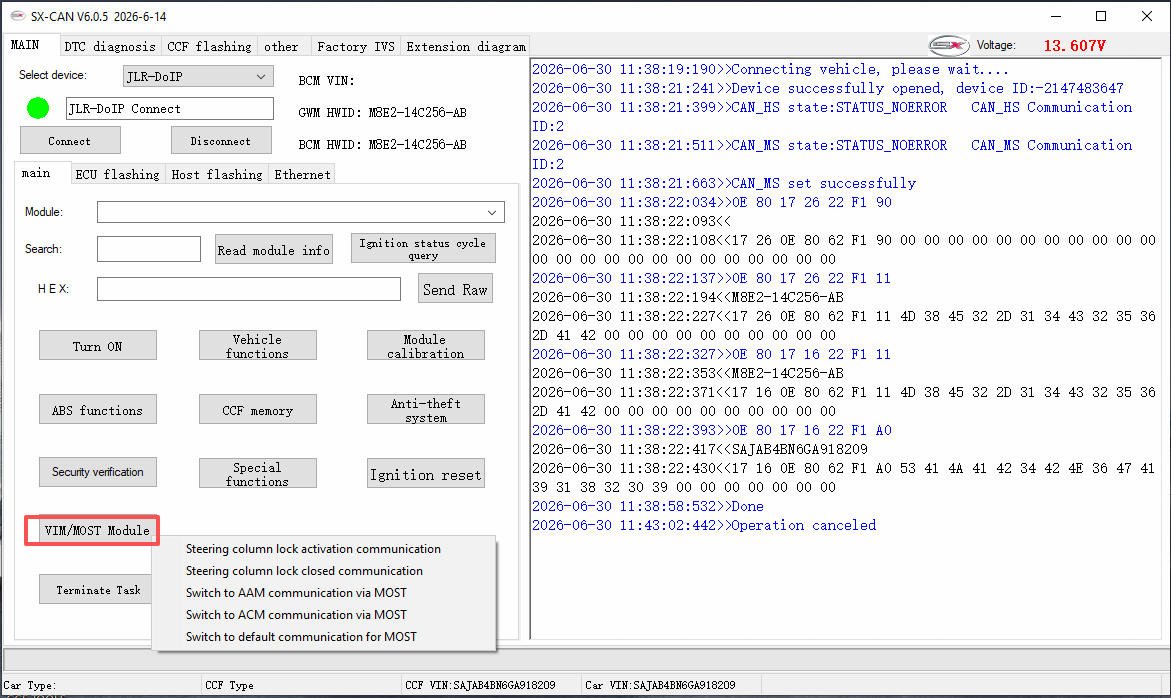

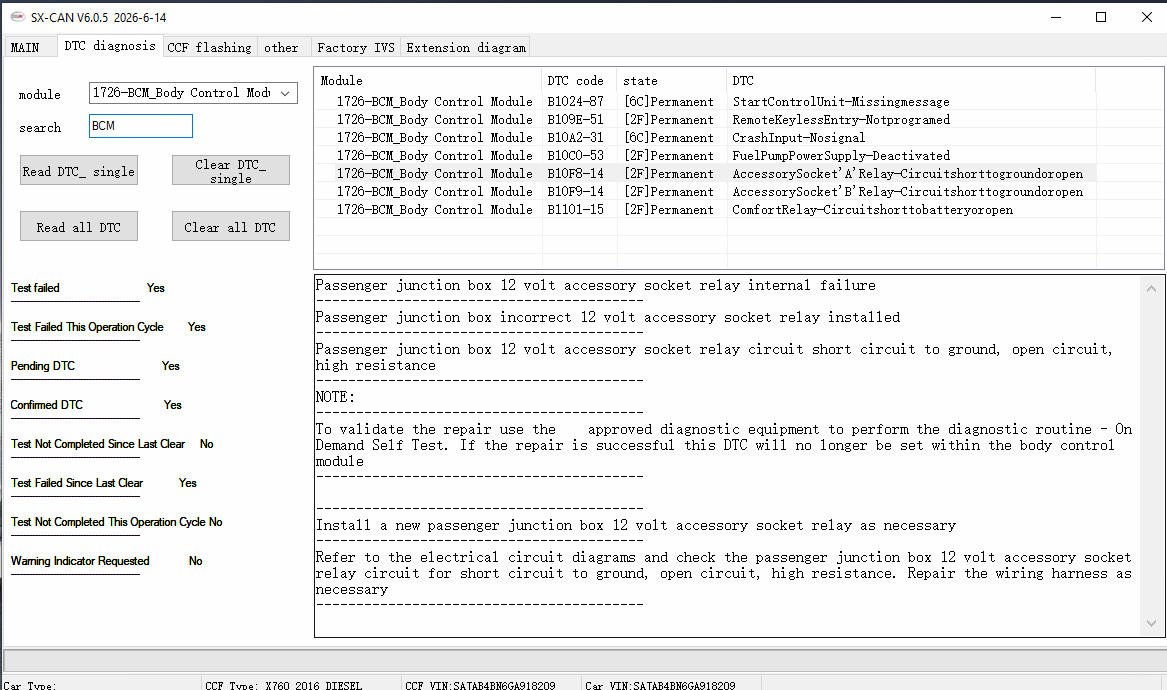

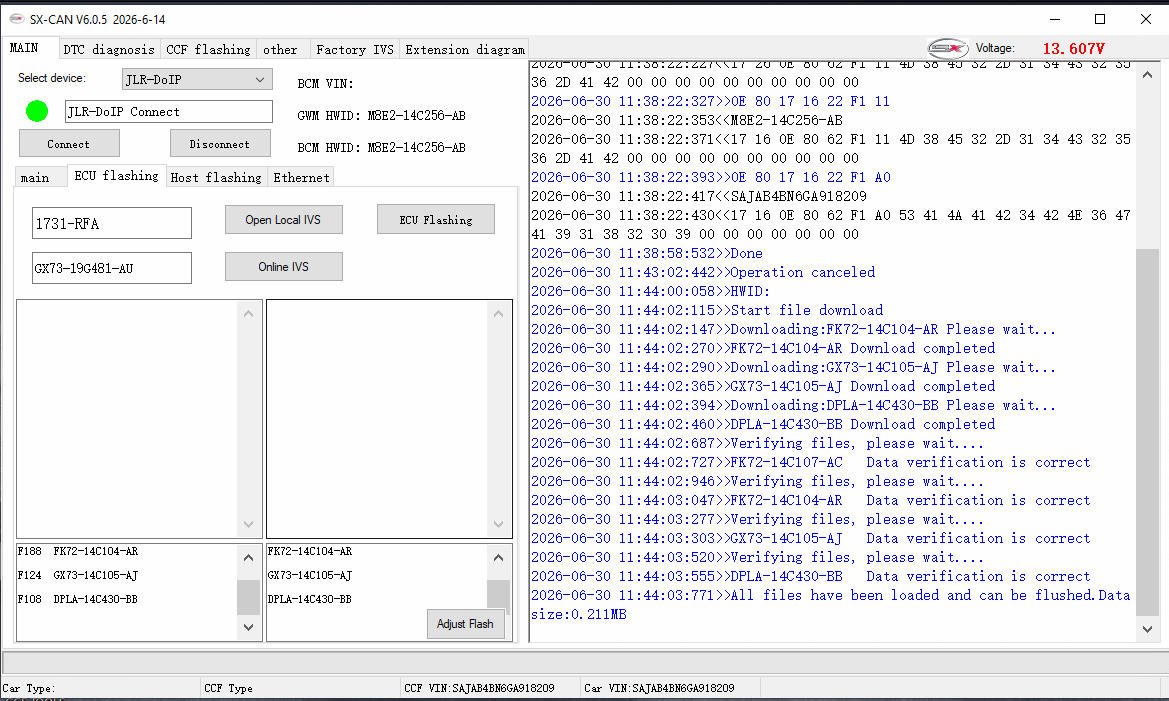

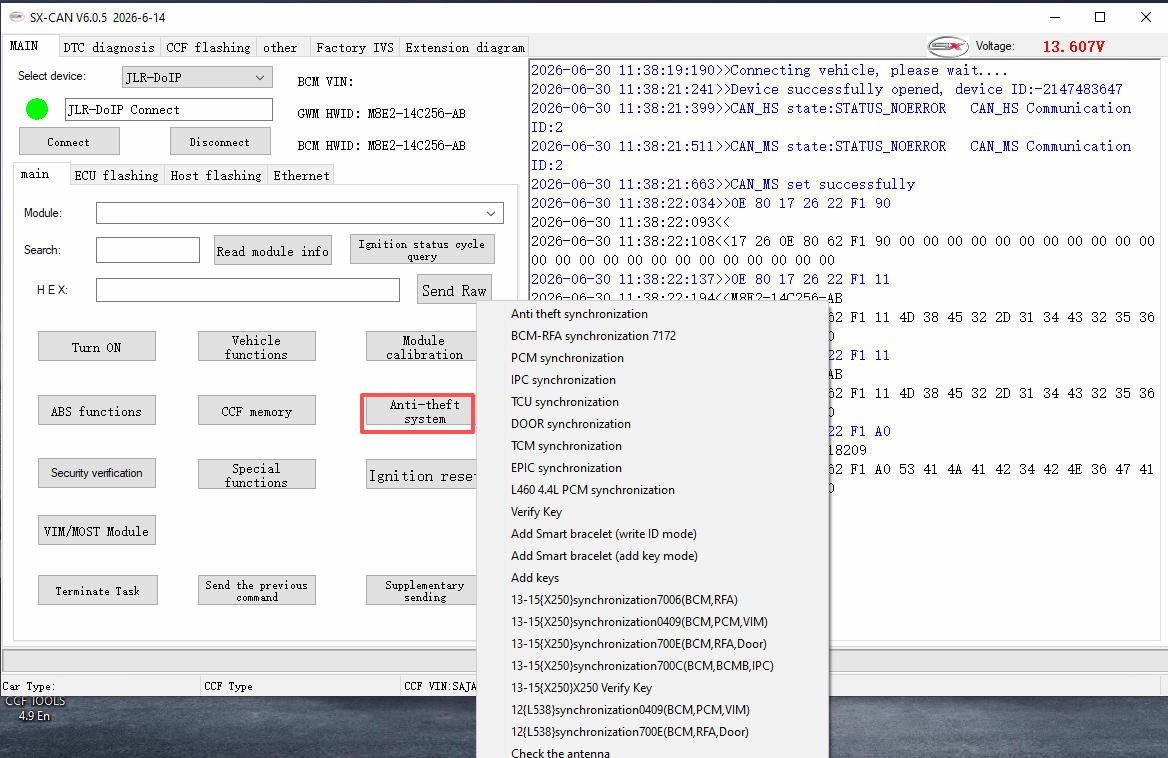

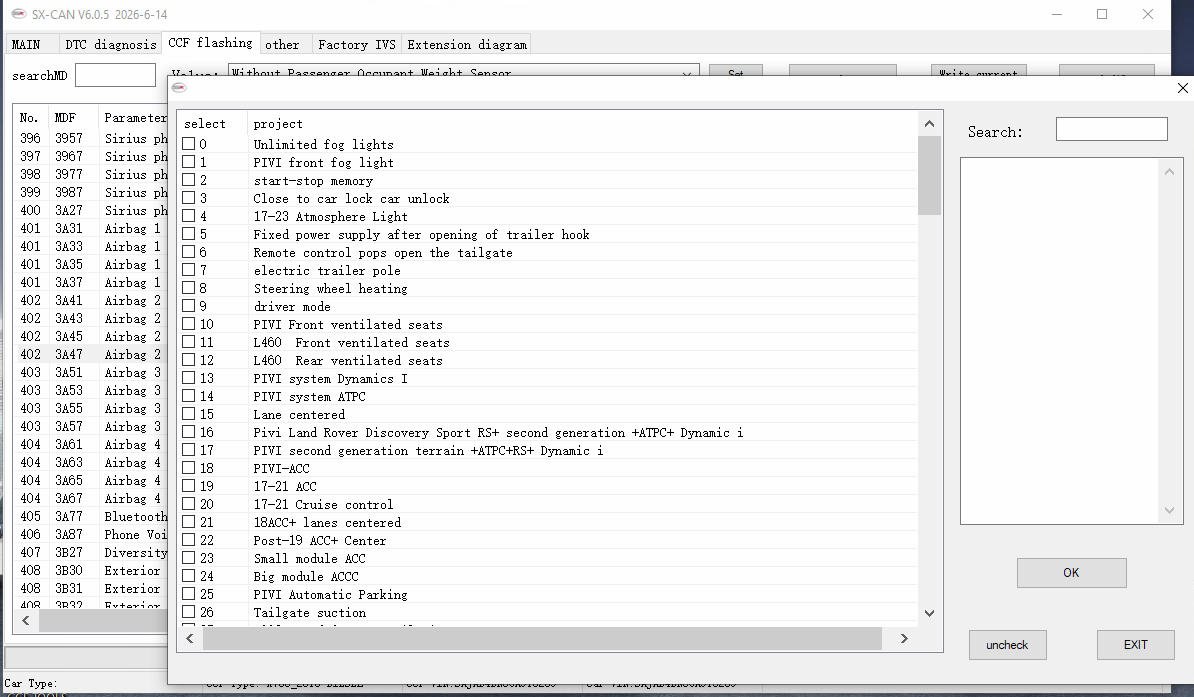

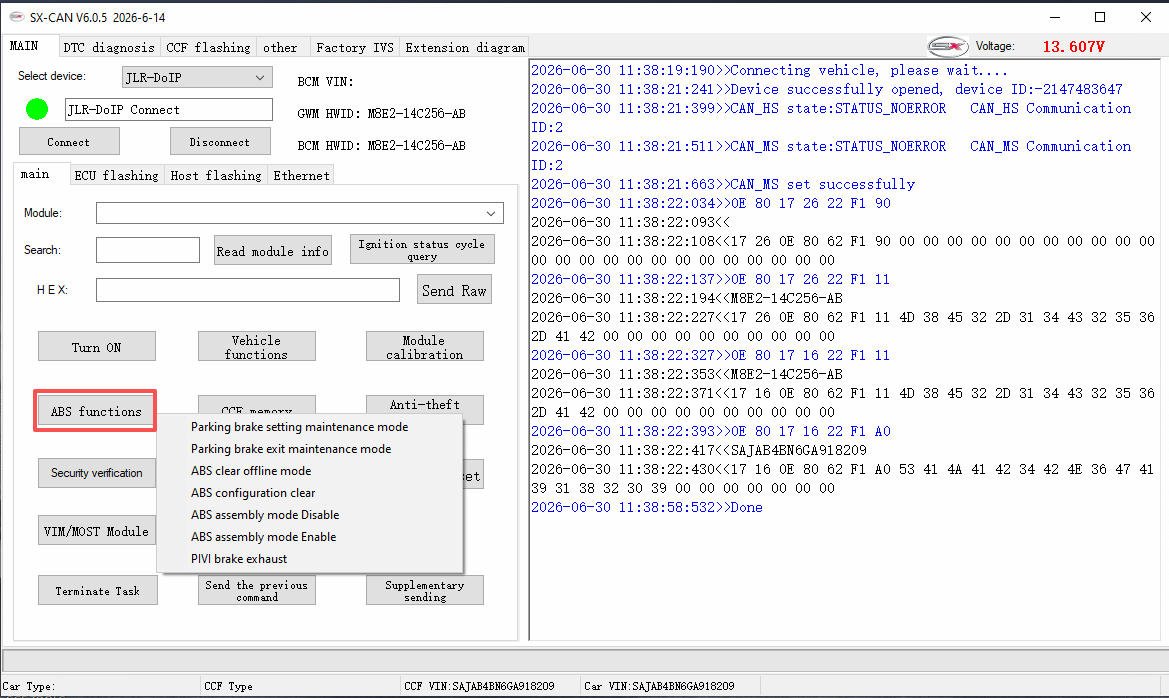

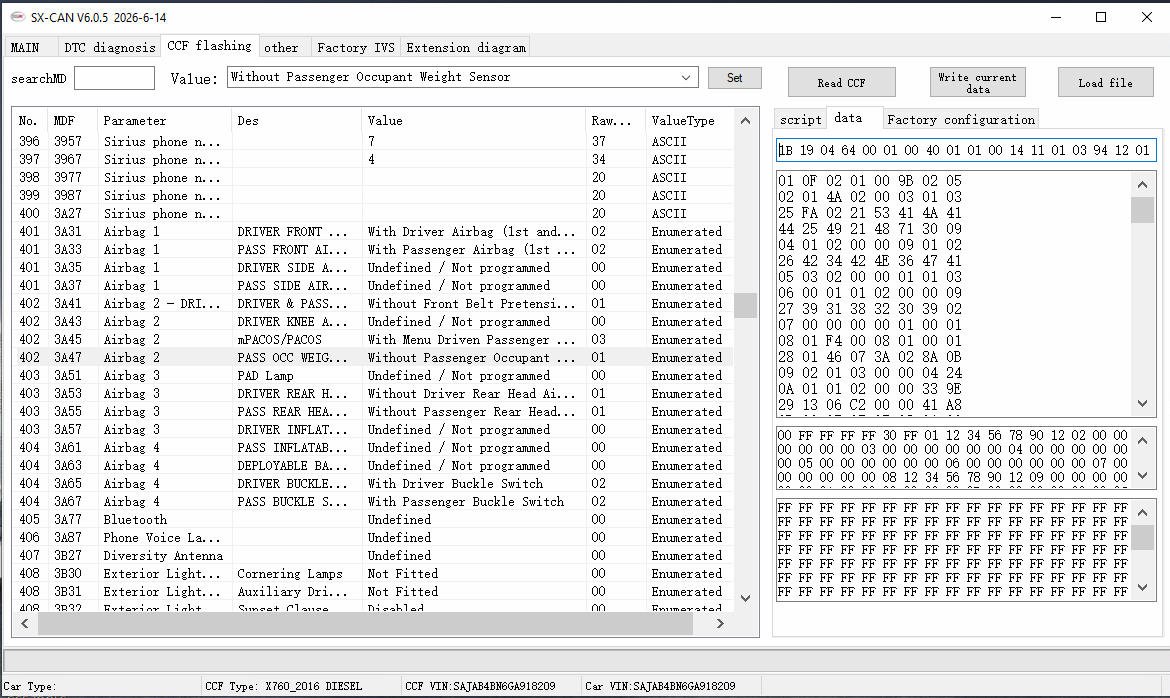

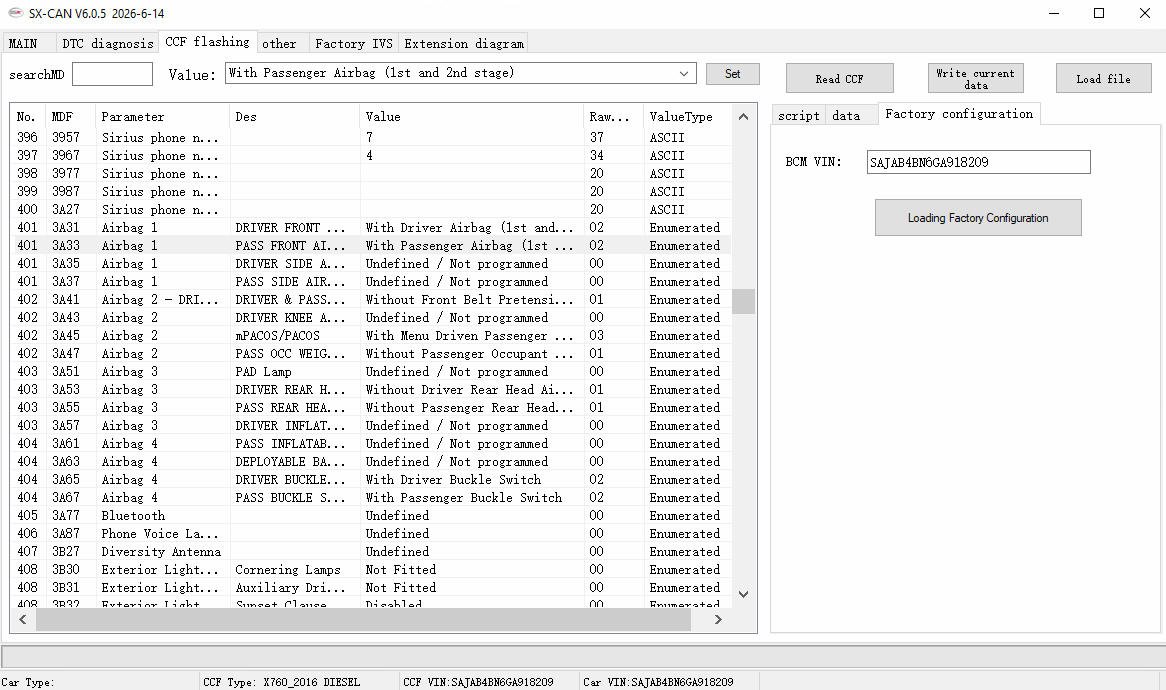

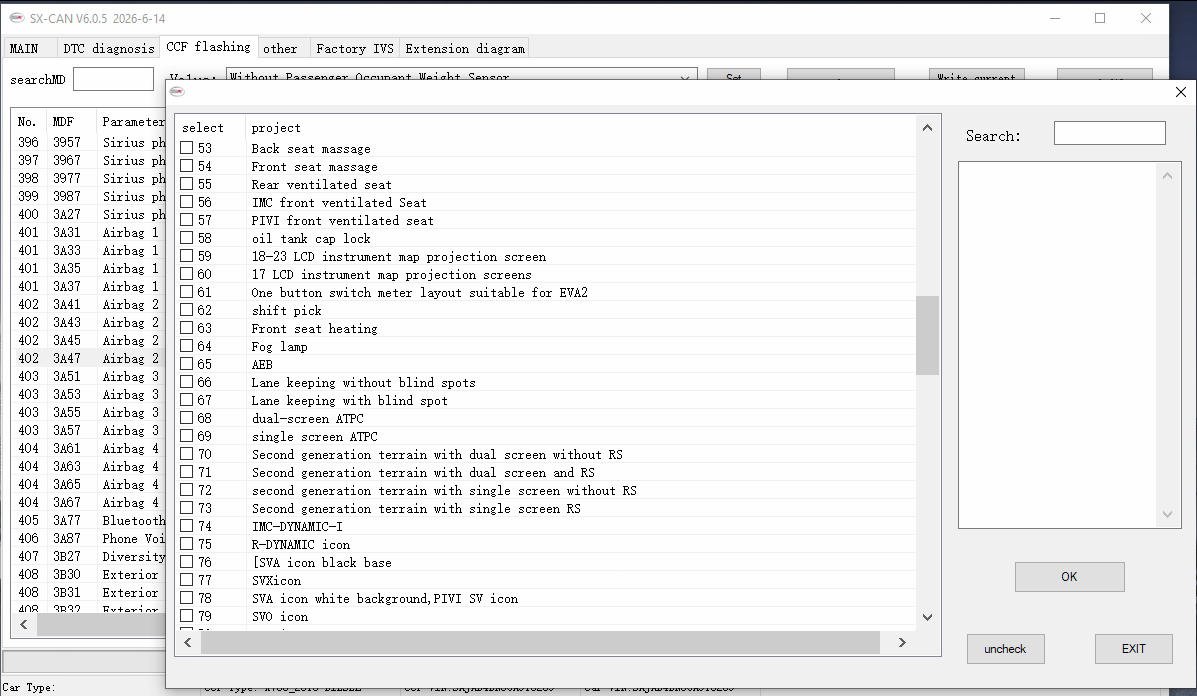

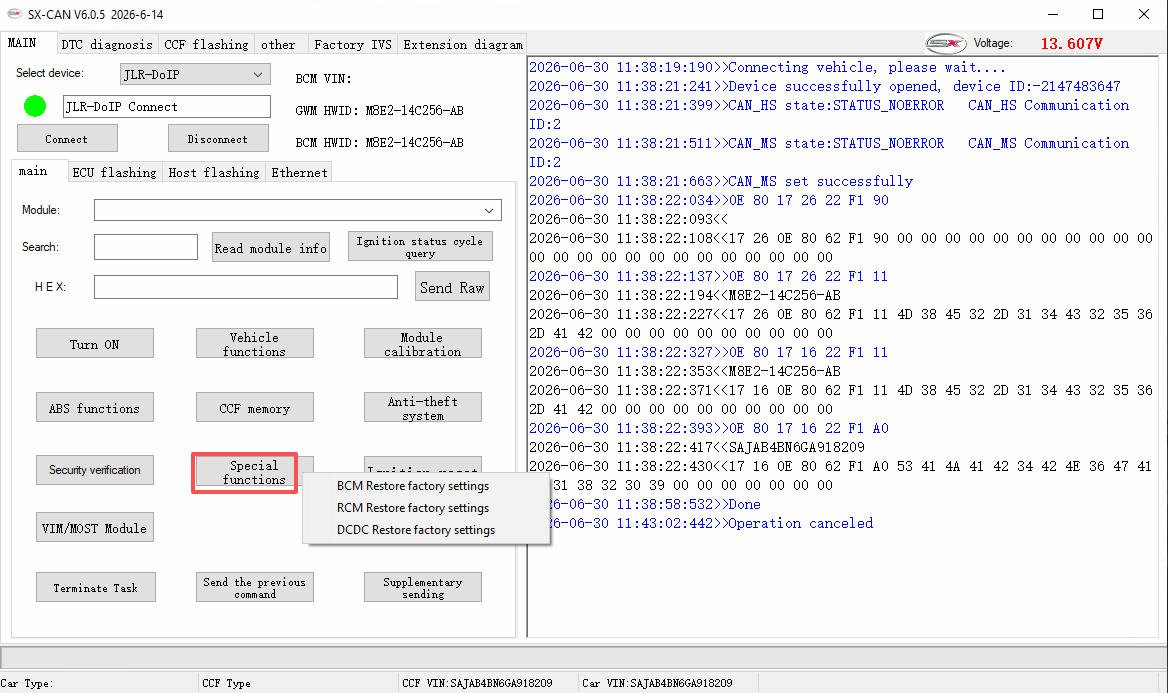

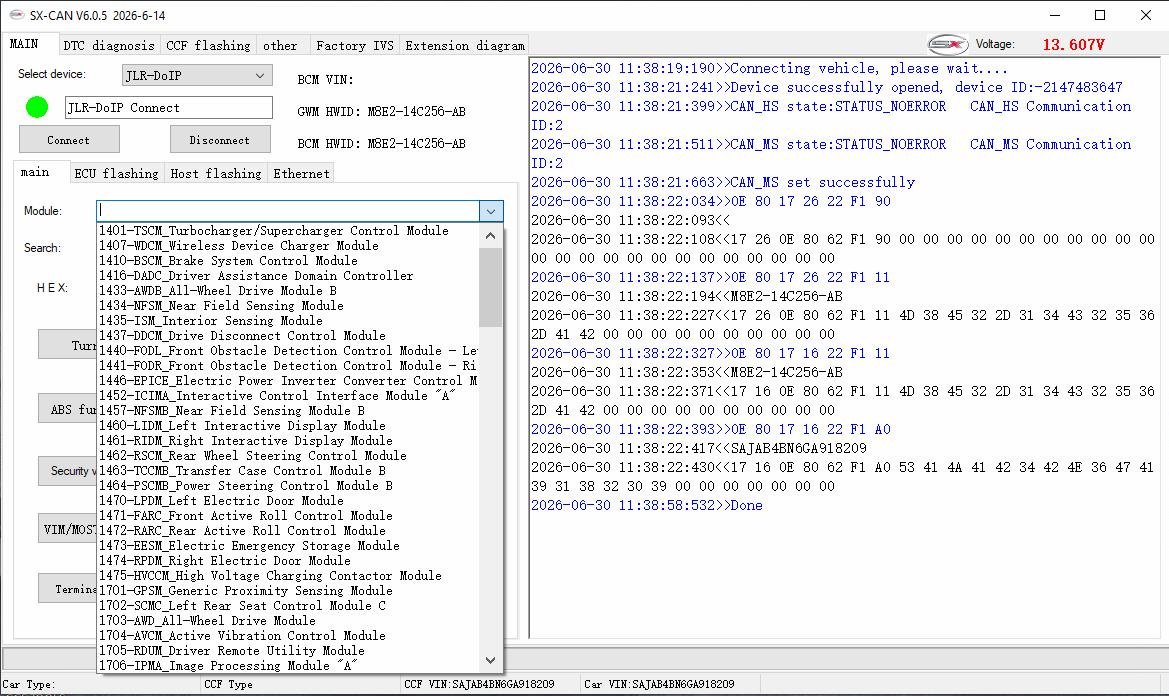

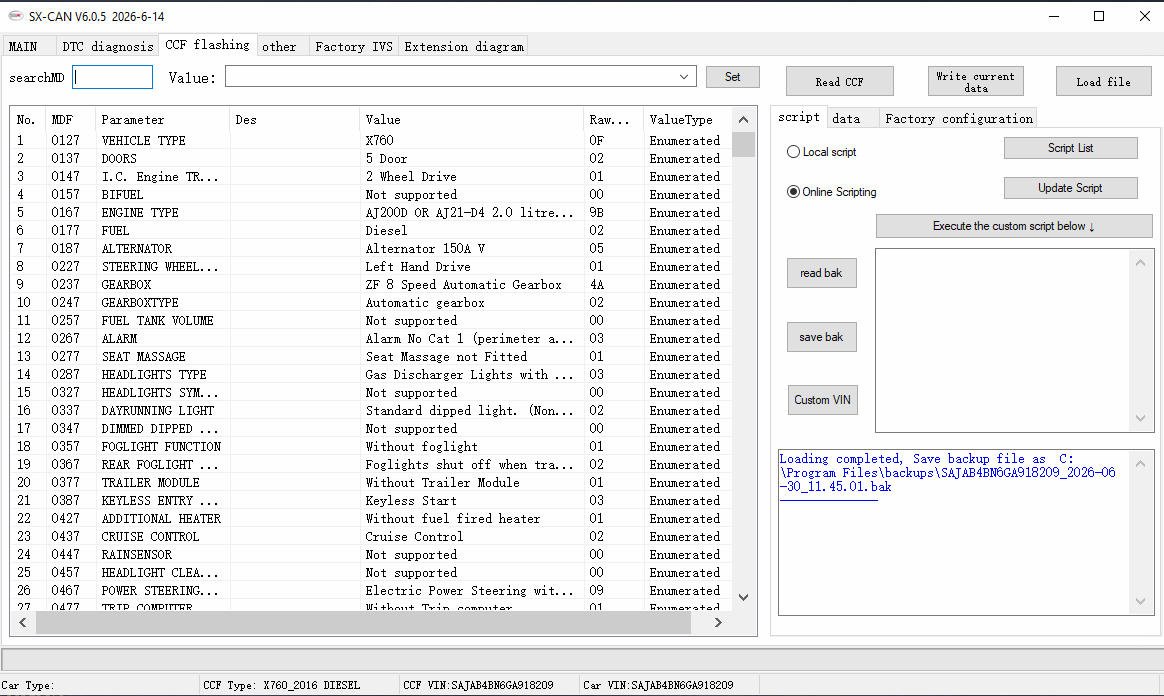

Real-world screenshots and workshop photos showing SX-CAN across diagnostics, data logging, CAN bus analysis, and development workflows.
| Parameter | Specification |
|---|---|
| CAN Standard | ISO 11898-1 (Classic CAN) |
| CAN FD Standard | ISO 11898-1:2015 |
| Max CAN Speed | 1 Mbps |
| Max CAN FD Speed | 5 Mbps |
| PC Interface | USB 2.0 Type-C (isolated) |
| Vehicle Interface | OBD-II 16-pin |
| Galvanic Isolation | 2500 Vrms |
| Power | Bus-powered (USB) + OBD 12V |
| Operating Temp | -40°C to +85°C |
| Dimensions | 85 x 55 x 25 mm |
| SDK | C/C++, Python, C# API |
SX-CAN is designed to work alongside OEM engineering tools and workflows. Use it with JLR FIX software or integrate it into your own toolchain.
Plug-and-play with SX-tool for advanced diagnostics, CCF editing, and module programming. Recognized automatically with no manual driver configuration.
Compatible with CANalyzer, CANoe, BusMaster, and open-source tools like SavvyCAN. BLF and ASC export for seamless workflow integration.
SX-CAN high-speed CAN interface with SDK. Volume discounts available for multi-bay workshops.
All-in-one JLR engineering platform. Works seamlessly with SX-CAN for diagnostics and programming.
